Understanding Pipe Joints, Mechanical Realm

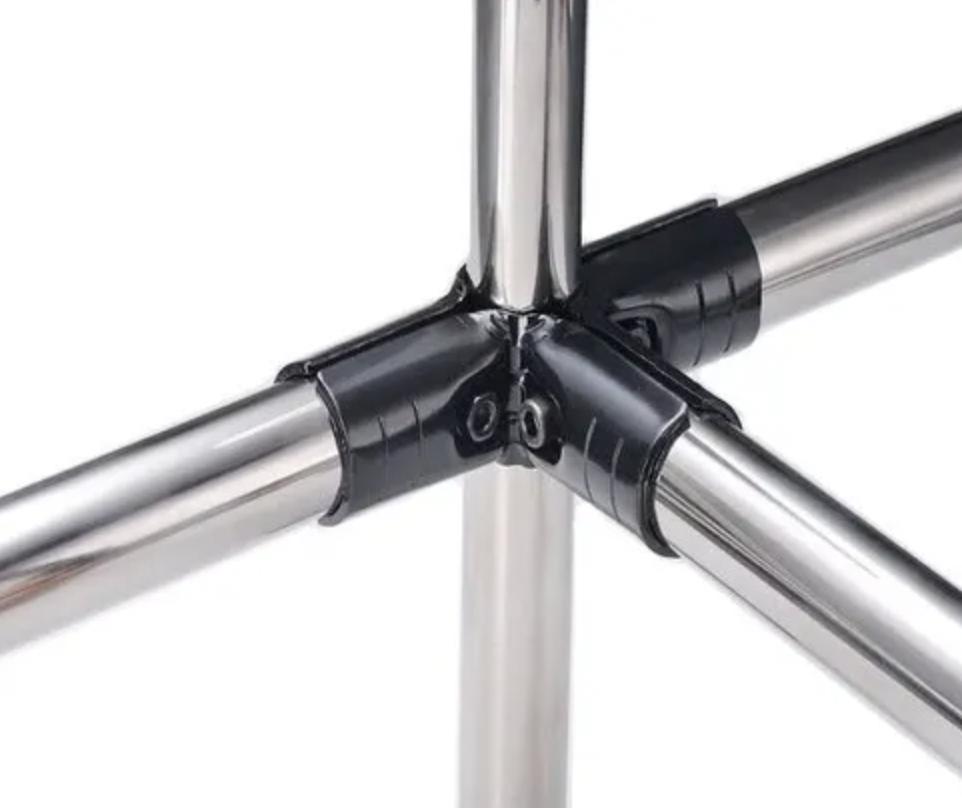

Pipe joints are connections between two or more pipes that allow for the conveyance of fluids, gases, or solids within a system. They are essential components in plumbing, industrial processes, oil and gas industries, and more. The primary functions of pipe joints include:

Ensuring Leak-Proof Connections

One of the most crucial functions of pipe joints is to create a leak-proof connection that prevents the escape of the transported medium, whether it be water, gas, oil, or chemicals. A well-selected and properly installed joint ensures that no fluid loss occurs, maintaining the efficiency of the system and preventing damage to surrounding structures. Various sealing mechanisms, such as gaskets, O-rings, or thread sealants, are used to enhance the joint's integrity, ensuring that the piping system remains secure under operational conditions.

Accommodating Thermal Expansion and Contraction

Piping systems are often exposed to fluctuating temperatures, which cause expansion and contraction of the material. If not properly accounted for, these thermal movements can lead to cracks, leaks, or even complete joint failure. Flexible pipe joints, such as expansion joints or grooved couplings, are specifically designed to absorb these variations without compromising the integrity of the system. By selecting the right joint type, engineers can prevent structural stress and prolong the lifespan of the piping network.

Facilitating Maintenance and Repairs

In any piping system, maintenance and repair are inevitable over time due to wear, corrosion, or unexpected damage. Certain pipe joints, such as flanged or compression joints, are designed to be easily disassembled and reassembled, making maintenance more efficient. These types of joints allow for quick replacement of damaged sections, minimizing downtime and reducing labor costs. By considering future maintenance needs during joint selection, facility managers can ensure hassle-free operation and extend the system's service life.

Providing Flexibility

In many applications, particularly in industrial and mechanical systems, piping is subject to movement due to vibrations, pressure changes, or external forces. Flexible pipe joints, such as ball-and-socket or expansion joints, help absorb these movements, preventing stress and potential damage to the system. This flexibility is particularly important in areas prone to seismic activity or heavy machinery vibrations, where rigid connections could lead to breakages. The right joint selection ensures that the piping system remains stable while allowing necessary movement to occur without risk.

Also Read: What Are Gusset Plates? Uses, Design, and Applications Explained

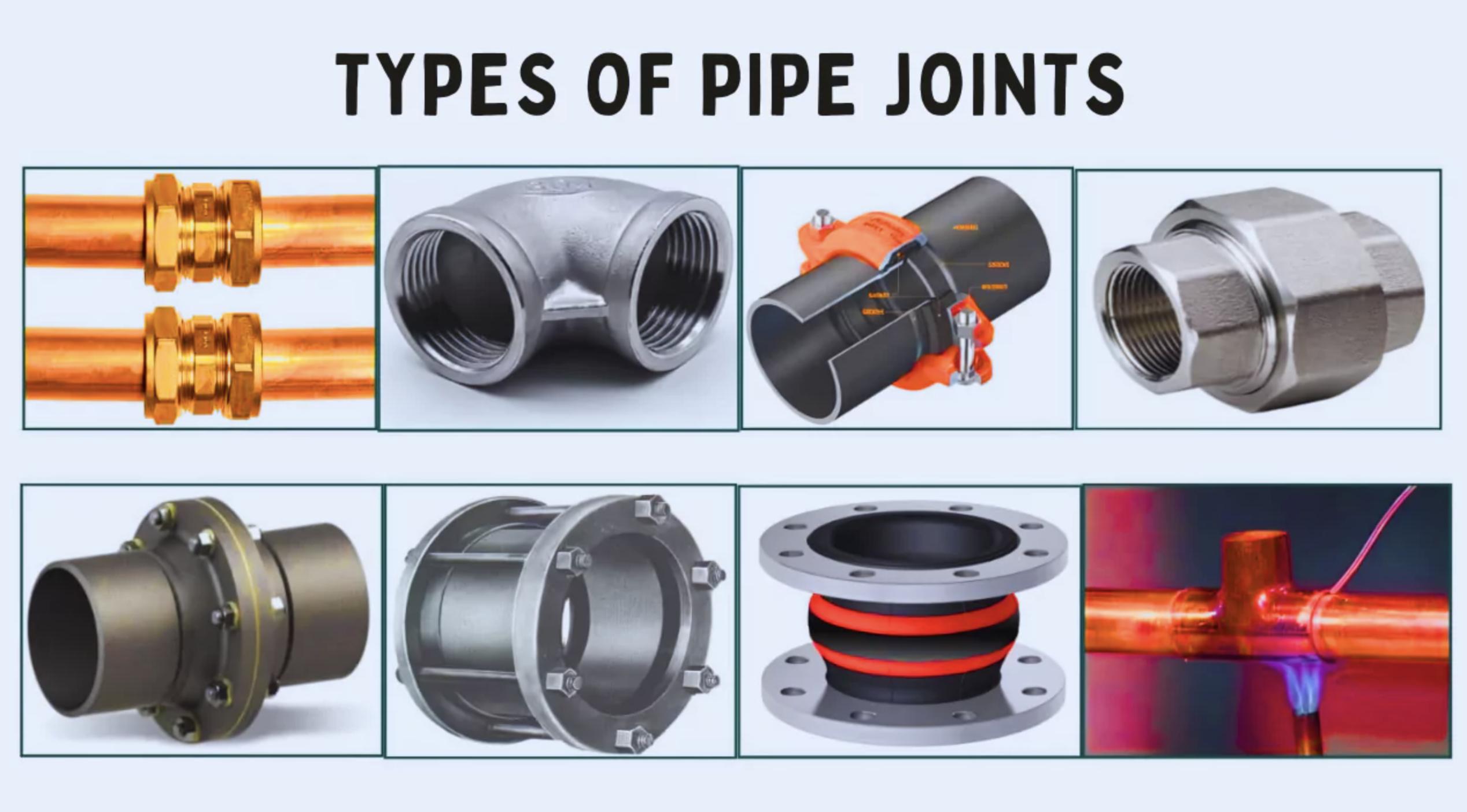

Types of Pipe Joints, The Engineering Choice

Various pipe joints are available, each designed to meet specific requirements. Understanding their characteristics and applications is vital for selecting the right type.

1. Threaded Joints

Threaded joints involve screwing pipes together using matching threads cut into the pipe ends. They are commonly used for small-diameter pipes and low-pressure applications.

• Materials: Typically used with pipes made of steel, iron, PVC, and copper.
• Applications: Plumbing systems, water supply lines, and gas pipelines.
• Advantages: Easy assembly and disassembly without specialized tools.
• Disadvantages: Not suitable for high-pressure systems; potential for leaks if not properly sealed.

2. Welded Joints

Welded joints are formed by fusing the ends of pipes together using heat. This method provides a strong and permanent connection.

• Types:
• Butt Welded Joints: Pipes are joined end-to-end.
• Socket Welded Joints: One pipe end is inserted into a recessed area of the adjoining pipe or fitting.
• Materials: Commonly used with steel and stainless steel pipes.
• Applications: High-pressure and high-temperature systems, such as in oil and gas industries.
• Advantages: Strong, leak-proof connections suitable for severe conditions.
• Disadvantages: Requires skilled labor and specialized equipment; permanent joints are not easily disassembled.

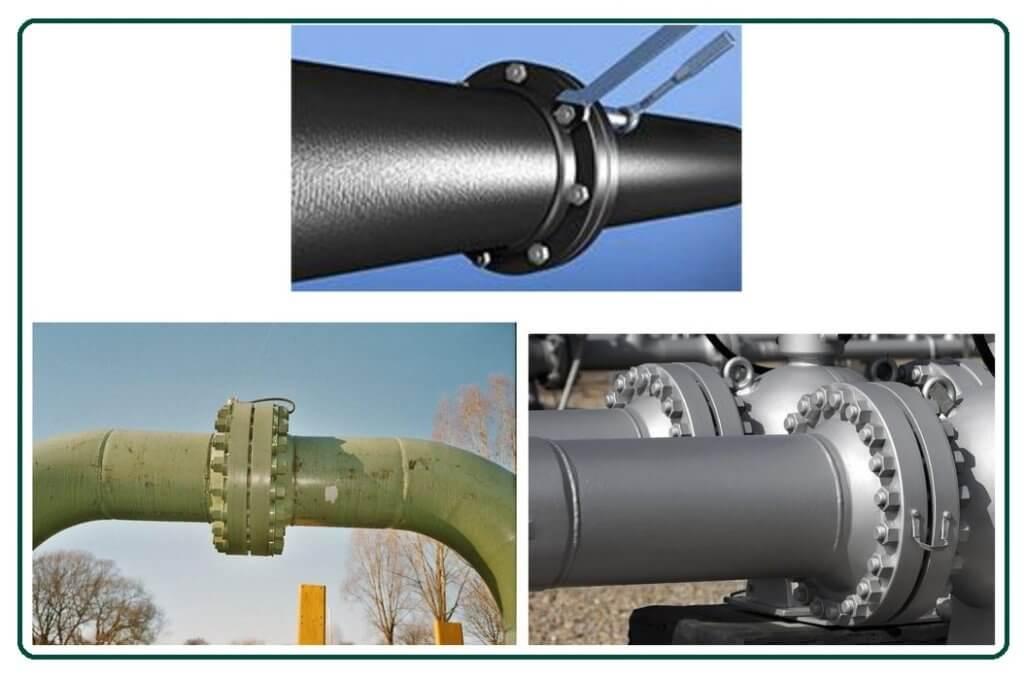

3. Flanged Joints

Flanged joints consist of flanges-flat, circular discs, attached to the pipe ends. The flanges are bolted together with a gasket in between to ensure a seal.

• Materials: Suitable for various materials, including steel, PVC, and ductile iron.
• Applications: Systems requiring frequent assembly and disassembly, such as in water treatment plants and industrial processes.
• Advantages: Ease of maintenance and replacement; accommodates high pressures.
• Disadvantages: Bulkier and heavier than other joints; requires precise alignment.

4. Soldered and Brazed Joints

These joints involve joining pipes by melting a filler metal into the joint. Soldering uses a filler metal with a lower melting point, while brazing uses one with a higher melting point.

• Materials: Commonly used with copper pipes.
• Applications: Domestic water supply lines, HVAC systems, and refrigeration.
• Advantages: Provides a strong, leak-free joint; suitable for various temperatures and pressures.
• Disadvantages: Requires skilled labor; not suitable for systems with extreme temperatures or pressures.

5. Compression Joints

Compression joints use a fitting with a compressible ring (ferrule) that tightens around the pipe when the nut is tightened, creating a seal.

• Materials: Used with metal and plastic pipes, including copper, PVC, and PEX.
• Applications: Plumbing repairs, fixture connections, and low-pressure applications.
• Advantages: No special tools required; easy to install and remove.
• Disadvantages: May not withstand high pressures; potential for leaks if not properly installed.

6. Push-Fit Joints

Push-fit joints allow pipes to be connected by simply pushing them into the fitting, where internal rings or teeth grip the pipe to form a seal.

• Materials: Compatible with PEX, CPVC, and copper pipes.
• Applications: Residential plumbing, especially in tight spaces or for quick repairs.
• Advantages: Quick and easy installation without tools; reusable fittings.
• Disadvantages: Generally more expensive; may not be suitable for all pressure conditions.

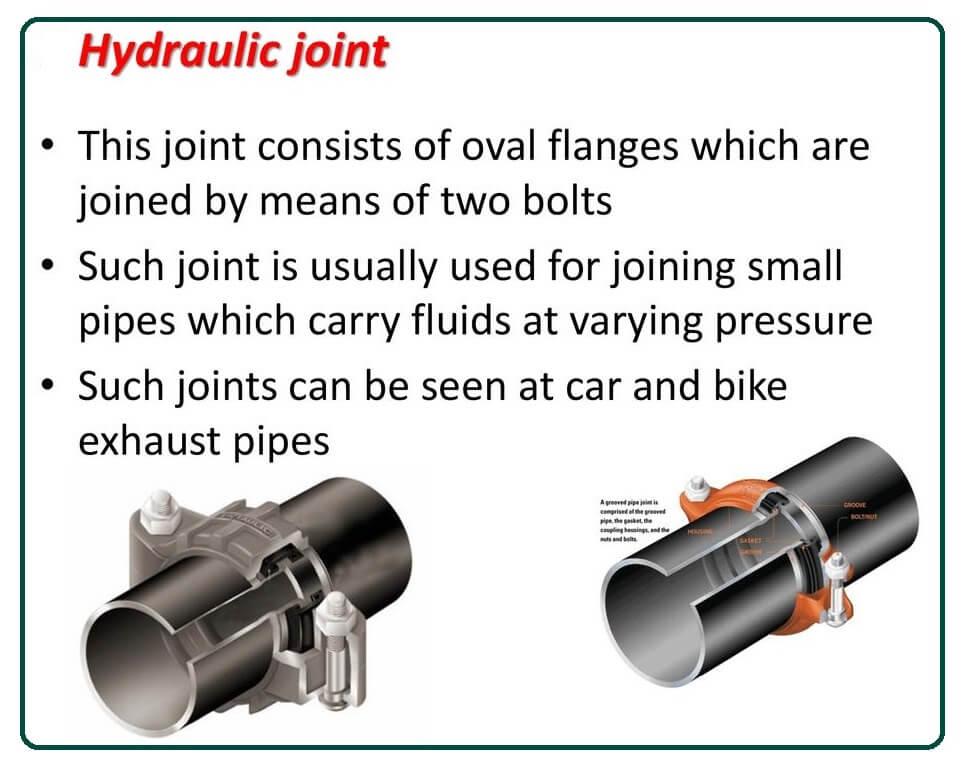

7. Grooved Joints

Grooved joints involve a groove cut into the pipe ends, which are then connected using a coupling that engages the grooves to hold the pipes together.

• Materials: Typically used with steel and ductile iron pipes.
• Applications: Fire protection systems, HVAC, and mining operations.
• Advantages: Allows for movement and flexibility in the system; easy to install and dismantle.
• Disadvantages: Requires special grooving tools; may not be suitable for very high-pressure applications.

Factors to consider when selecting a pipe joint, India Mart

Choosing the right pipe joint depends on several critical factors. Here's what you should consider:

1. Material Compatibility

Selecting a pipe joint that is compatible with the pipe material is essential for ensuring a secure and long-lasting connection. Different materials, such as steel, copper, PVC, and PEX, have unique properties that affect joint performance. For example, metal pipes require joints that can withstand corrosion and high pressure, while plastic pipes often need flexible or solvent-welded joints. Additionally, in environments with corrosive substances or underground applications, selecting corrosion-resistant materials like stainless steel or PVC is critical to preventing premature joint failure.

2. Pressure and Temperature Ratings

Pipe joints must be chosen based on the pressure and temperature conditions of the system to prevent leaks, deformations, or failures. High-pressure systems, such as those in industrial or oil and gas applications, require robust joints like welded or flanged connections, which can withstand extreme forces without leaking. Conversely, for low-pressure applications such as household plumbing, threaded, compression, or push-fit joints may be sufficient. Similarly, temperature variations can impact joint selection, as extreme heat can weaken certain materials, requiring high-temperature-resistant joints in such cases.

3. Application and Industry Requirements

The intended use of the piping system plays a crucial role in joint selection, as different industries have varying requirements. In residential plumbing, compression, soldered, or push-fit joints are commonly used due to their ease of installation and maintenance. In the oil and gas industry, where systems operate under high pressure and extreme temperatures, welded and flanged joints are preferred for their strength and durability. HVAC systems, on the other hand, often utilize grooved and brazed joints, which provide flexibility and can handle thermal expansion without causing leaks.

4. Ease of Installation and Maintenance

Ease of installation is an important consideration, particularly in applications where frequent repairs or modifications are needed. Some joints, such as flanged or compression joints, are designed to be easily disassembled, making them ideal for systems that require regular maintenance. In contrast, welded or soldered joints form permanent connections that are strong but difficult to modify or replace. Choosing the right joint type based on the expected maintenance frequency can save time and costs in the long run.

5. Environmental Factors

The external environment where the piping system is installed has a significant impact on the longevity and performance of pipe joints. Outdoor and underground pipes are exposed to moisture, soil conditions, and temperature fluctuations, which can lead to material degradation if improper joints are used. In such cases, corrosion-resistant joints, such as those made of stainless steel or coated materials, are recommended. In industrial settings with exposure to chemicals or extreme conditions, specialized joints like grooved or flanged options provide better durability and resistance to harsh environments.

6. Cost Considerations

Budget constraints are a key factor in pipe joint selection, as different types of joints vary in price, installation complexity, and long-term durability. Compression and push-fit joints are cost-effective and ideal for quick installations or repairs, but they may not be suitable for high-pressure applications. Welded joints, though more expensive initially due to labor and equipment costs, offer a more permanent and durable solution that reduces the need for frequent repairs. Evaluating the upfront cost versus long-term performance can help in making an economically sound decision.

7. Regulatory Compliance

Every industry and region has specific codes and regulations governing the use of pipe joints to ensure safety and performance. It is essential to select joints that meet local plumbing codes, fire safety standards, and industrial regulations. For example, in water supply systems, certain types of joints must be lead-free to comply with drinking water safety standards. In industries like oil and gas, regulatory bodies mandate specific joint types that can withstand extreme pressures and prevent leaks. Ensuring compliance with these standards not only avoids legal issues but also guarantees the reliability of the piping system.

Also Read: Geotextiles: Transforming India's Infrastructure and Environment

Best Practices for Installing Pipe Joints, Mechanical Realm

To ensure leak-proof, long-lasting connections, follow these best practices:

1. Prepare Pipe Ends Properly

Before assembling any pipe joint, it is crucial to prepare the pipe ends properly to ensure a secure and leak-proof connection. Cleaning the pipe ends thoroughly removes dirt, oil, and debris that could compromise the seal. Additionally, any burrs or rough edges left from cutting should be smoothed out using a deburring tool or sandpaper. This step prevents uneven connections and enhances the effectiveness of sealing materials, reducing the risk of leaks or joint failure over time.

2. Use Proper Sealing Methods

Effective sealing is key to preventing leaks in pipe joints, especially in threaded and flanged connections. For threaded joints, applying PTFE tape or a liquid thread sealant helps create a tight seal by filling any gaps between the threads. In flanged joints, high-quality gaskets should be used to provide a compression seal between the flange faces. The right sealing method depends on the type of joint and the medium being transported, ensuring long-term reliability and system integrity.

3. Ensure Proper Alignment

Proper alignment of pipes and joints is essential to maintaining a stable and leak-free system. Misaligned pipes can cause stress at the joint, leading to leaks, cracks, or premature failure due to uneven pressure distribution. Using alignment tools, such as levels and pipe clamps, ensures that the pipes are correctly positioned before securing the joint. This step is particularly important in rigid connections, like welded or flanged joints, where misalignment can result in costly repairs and operational disruptions.

4. Follow Manufacturer Guidelines

Each type of pipe joint comes with specific installation instructions provided by the manufacturer. These guidelines include torque specifications, recommended sealing materials, and step-by-step assembly procedures. Ignoring these instructions can lead to improper installation, increasing the risk of leaks, joint failure, or system inefficiencies. Adhering to the manufacturer's recommendations ensures that the joint functions as intended, prolonging the lifespan of the piping system and maintaining optimal performance.

5. Conduct Pressure Testing

After installation, it is vital to test the system for leaks before putting it into operation. Pressure testing, such as hydrostatic or pneumatic testing, helps identify weak points or potential failures in the joints. Hydrostatic testing involves filling the system with water and pressurizing it to detect leaks, while pneumatic testing uses air or gas for the same purpose. Conducting these tests ensures that the joints can withstand operational pressures and prevents unexpected failures once the system is in use.

6. Regular Inspection and Maintenance

To maintain the efficiency and durability of pipe joints, regular inspections and maintenance should be carried out. Over time, joints can deteriorate due to wear, corrosion, or temperature fluctuations. Periodic checks help identify leaks, cracks, or loose fittings before they escalate into significant issues. Replacing worn-out components, reapplying sealants, and tightening connections when necessary can extend the lifespan of the piping system and prevent costly repairs or downtime in critical operations.
