The choice of materials significantly impacts the durability, cost, and sustainability of the structure. In India, common materials for house framing include:

1. Timber

Wood has been a traditional building material in many parts of India, especially in regions rich in forest resources. Types of timber commonly used include:

• Teak (Tectona grandis): Known for its strength and resistance to termites and decay, teak is a premium choice but comes at a higher cost.
• Sal (Shorea robusta): Valued for its durability and strength, sal wood is commonly used in construction.
• Deodar (Cedrus deodara): Predominantly used in northern India, deodar is appreciated for its resistance to rot and insects.

However, the use of timber is subject to availability and environmental regulations to prevent deforestation.

2. Steel

Steel framing is gaining popularity due to its strength, uniformity, and resistance to pests and fire. It is especially advantageous in areas prone to termites or where timber is scarce. Steel frames can be prefabricated, allowing for quicker assembly on-site. However, considerations regarding thermal conductivity and corrosion in humid environments are essential.

3. Concrete

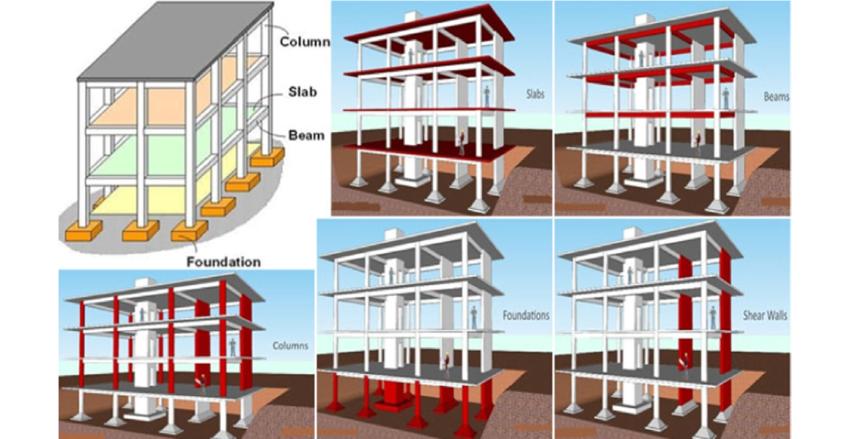

Reinforced concrete framing is widely used in India, particularly for multi-story buildings. Concrete offers excellent compressive strength and fire resistance. The use of reinforced concrete columns and beams allows for flexible design and is well-suited to urban areas where space is limited.

The cost of house framing in India varies based on factors such as material choice, labor, location, and design complexity. Understanding these costs is essential for effective budgeting.

1. Material Costs

• Timber: The cost of timber varies depending on the type and quality. Premium woods like teak are more expensive, while locally sourced timber may be more affordable. Environmental regulations can also impact availability and cost.
• Steel: Steel framing can be more expensive than timber but offers benefits like durability and pest resistance. Prefabrication can reduce on-site labor costs.
• Concrete: The cost of reinforced concrete includes expenses for cement, aggregates, steel reinforcement, and formwork. Prices can fluctuate based on market conditions.

2. Labor Costs

Labor costs are influenced by the complexity of the framing method and regional wage rates. Traditional techniques like Kath-Kuni require skilled artisans, which can increase costs. Conversely, prefabricated steel or concrete frames may reduce labor expenses by streamlining the construction process.

3. Additional Costs

• Transportation: The cost of transporting raw materials to the construction site can be significant, especially in remote areas.
• Permits and Approvals: Local building codes and regulations may necessitate permits, which add to overall expenses.
• Seismic and Wind Resistance Measures: In areas prone to earthquakes or strong winds, additional reinforcements such as cross-bracing and shear walls may be required.

1. Site Preparation and Foundation

Before framing begins, a strong foundation is necessary to support the structure. The site is cleared, leveled, and excavated. Common foundation types in India include:

• RCC (Reinforced Cement Concrete) Foundations for multi-story buildings.
• Brick Foundations for single-story structures in rural areas.
• Pile Foundations in areas with weak soil conditions.

2. Laying the Sill Plate

The sill plate is the first wooden or concrete member attached to the foundation. It acts as a base for the wall framing and helps distribute loads evenly.

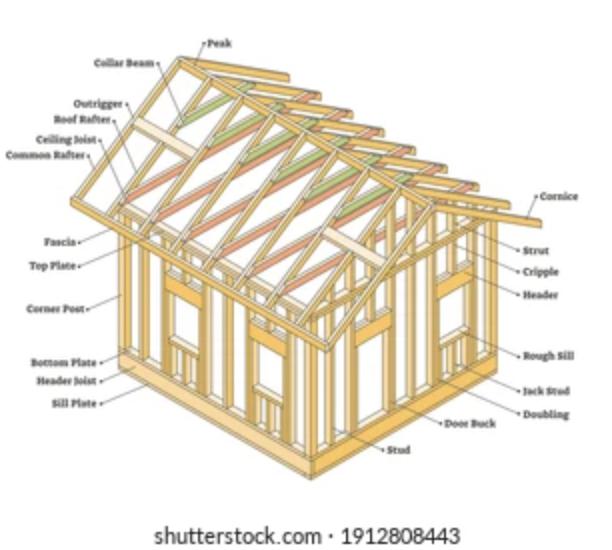

3. Constructing the Wall Frames

• Studs (vertical members) are spaced at standard intervals (typically 16 or 24 inches apart).
• Top and Bottom Plates hold the studs together, forming the wall frame.
• Openings for Doors and Windows are framed using headers and cripple studs.

4. Installing Floor Framing

• Floor joists (horizontal members) are installed to support the flooring.
• Subflooring (usually plywood or cement board) is placed on top of the joists.

5. Roof Framing

Roof framing varies based on climatic conditions and architectural style. Common methods include:

• Rafters for sloped roofs.
• Trusses for large spans, reducing the need for interior support walls.
• Flat RCC Slabs, common in urban areas for terrace access.

6. Bracing and Reinforcements

• Diagonal Bracing enhances lateral stability.
• Sheathing (plywood, fiber cement boards) is added to exterior walls to improve strength and insulation.

7. Finalizing the Structure

• Electrical and plumbing installations are completed within framed walls.
• Insulation is installed to improve energy efficiency.
• Exterior cladding (brick, stone, or siding) is added for aesthetics and protection.

While house framing in India follows both traditional and modern approaches, some challenges persist:

• Material Availability: High-quality timber is expensive and regulated.
• Skilled Labor Shortage: Traditional techniques require specialized craftsmen, which are becoming scarce.
• Weather Conditions: Heavy rains, humidity, and seismic activity influence construction choices.
• Cost Fluctuations: Market-driven price variations impact project budgets.

With growing environmental concerns, sustainable framing methods are gaining popularity:

Bamboo Framing

Bamboo is an excellent eco-friendly alternative for house framing, especially in regions with abundant natural bamboo resources. It boasts high tensile strength, comparable to steel, and grows rapidly, making it a highly renewable material. Due to its flexibility and lightweight nature, bamboo-framed structures can withstand earthquakes and high winds, making them suitable for disaster-prone areas. Additionally, bamboo's natural resistance to pests (when properly treated) and its ability to absorb carbon dioxide during growth contribute to its sustainability. Despite these advantages, proper curing and treatment are essential to prevent decay and extend the lifespan of bamboo structures.

Precast Concrete Panels

Precast concrete panels are an efficient and sustainable alternative to traditional construction methods, as they reduce on-site waste and construction time. These panels are manufactured in a controlled environment, ensuring minimal material wastage and higher quality control. By using precast technology, builders can lower labor costs and speed up project completion, reducing overall energy consumption on-site. Furthermore, thermal efficiency in precast panels helps in reducing heating and cooling costs, making them an energy-efficient option for modern homes. The reuse and recycling potential of precast concrete also make it a low-impact construction method that aligns with green building initiatives.

Steel Frame Recycling

Steel framing is a durable and highly recyclable option for house construction, making it one of the most sustainable choices for modern buildings. Unlike timber, which contributes to deforestation, steel can be reused and repurposed indefinitely without losing its structural integrity. The use of recycled steel in construction significantly reduces the need for raw material extraction, helping in resource conservation and waste reduction. Additionally, steel framing is resistant to pests, fire, and moisture, reducing the need for chemical treatments that can harm the environment. While energy-intensive during production, advancements in green steel manufacturing and energy-efficient processes are making steel framing even more sustainable for future construction.

Also Read: What is a One-Way Slab? Types, Design Considerations, and Practical Applications

House framing is a crucial phase in construction, determining the strength, stability, and longevity of a home. The choice of framing method, materials, and techniques depends on factors such as cost, climate, and design requirements. By incorporating sustainable materials and innovative construction methods, house framing can be made more efficient and environmentally friendly.
